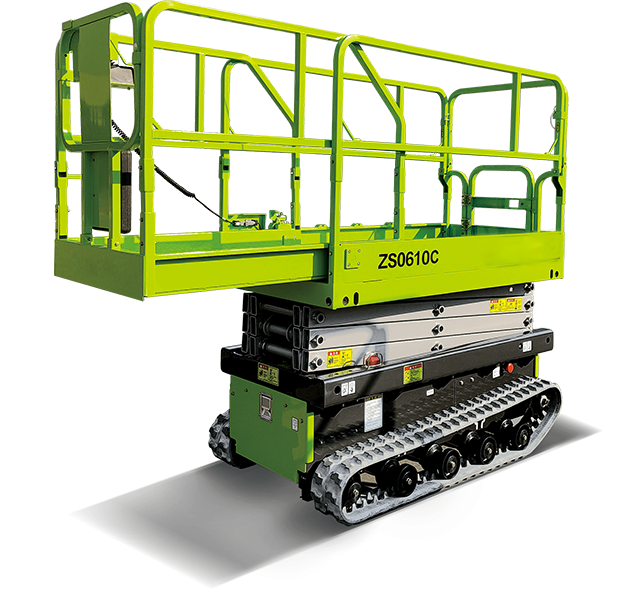

Work Height 8.80m
A Platform Height-Elevated 6.80m
B Platform Height-Stowed 1.12m
C Platform Length 1.94m
D Platform Width 0.95m
Platform Extension 0.91m
E Overall Height (Rails Up) 2.26m
Overall Height (Rails Down) 1.77m
F Overall Length 2.1m
G Overall Width 1.05m
H Ground Clearance 0.127m
RECOMMENDED
PRODUCTS
Platform Capacity 250kg
Capacity on Deck Extension 113kg
Max. Number of Workers 2
Drive Speed (Stowed) 2km/h
Drive Speed (Raised) 0km/h
Turning Radius 0m
Drive Motor 24V/2×1.8KW
Up/Down Time 34s/30s
Gradeability 30%(17°)
Max. Working Slope (Lateral/Vertical) 2°/2°
Drive Rear Wheels
Brake Rear Wheels
